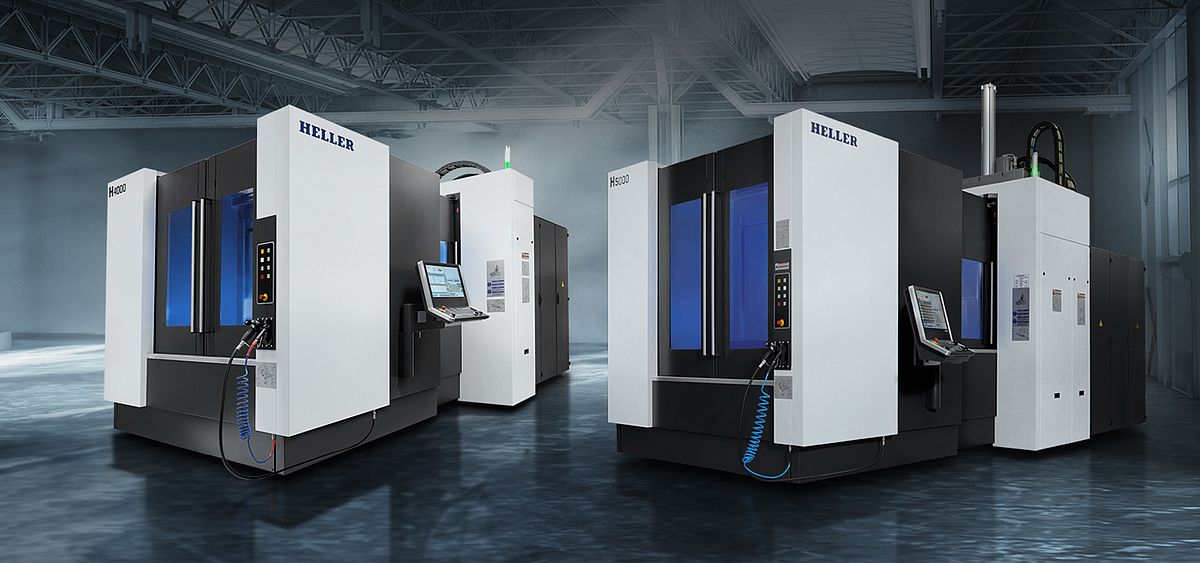

Machine concept

The rigid design and topology-optimised structural components are the basis from which our H-series 4-axis machining centres achieve their high cutting performance and accuracy. You can also rely on top quality – with high productivity.

4-axis machining centres H: Machine concept

Crossbed and travelling column in gate design

  • high stability and damping in the force flow through topology-optimised structural components in cast iron
  • thermo-symmetrical design and optimised flow of forces
  • a broad selection of robustly designed machining units
  • a broad selection of tool magazine types: chain or rack
  • tool changer with two NC axes for rapid, automatic tool change

4-axis kinematics with horizontally arranged spindle

  • machine bed supports the X- and Z-axes in crossbed arrangement
  • machine column moves in X direction and supports the machining unit
  • machining unit moves in Y direction, compact and stably integrated in machine column
  • rotary table moves in Z direction and performs feed motion
  • NC rotary feed table (rotary axis B) turns the workpiece with continuous adjustment (360,000 x 0.001°)

Anti-friction linear guideways and stable YRT bearing in rotary table

  • linear axes with roller guideways powered by ball screw drives for high feed forces
  • direct absolute measuring systems (glass scales in linear axes) for maximum precision and low positioning tolerance
  • equipment package Speed available as an option
  • NC rotary feed table with large YRT bearing and automatic clamping for maximum stability and high tilting moments
  • NC rotary feed table with gear unit for high circular milling torque and damping

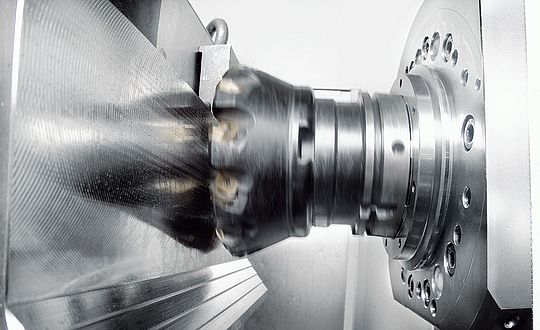

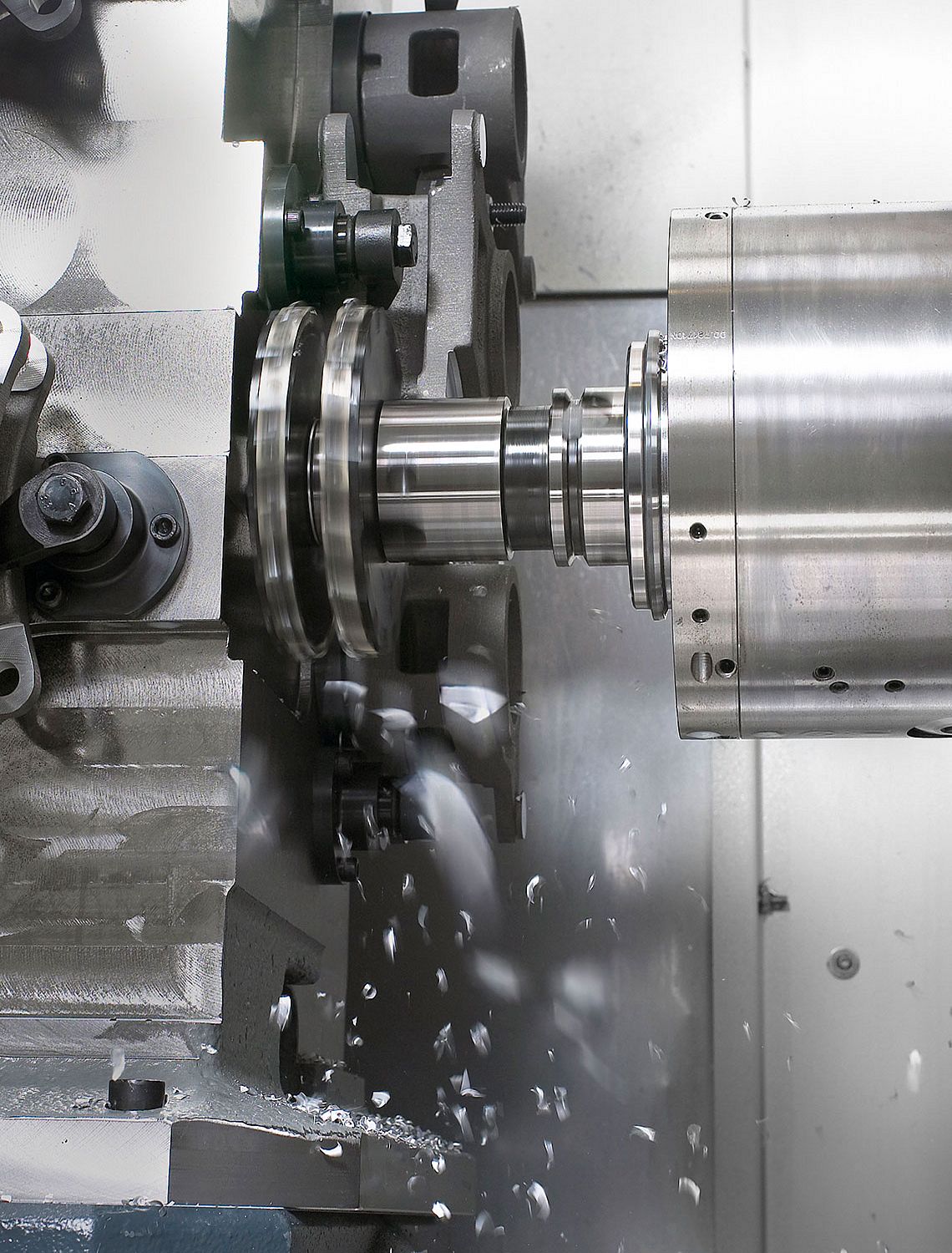

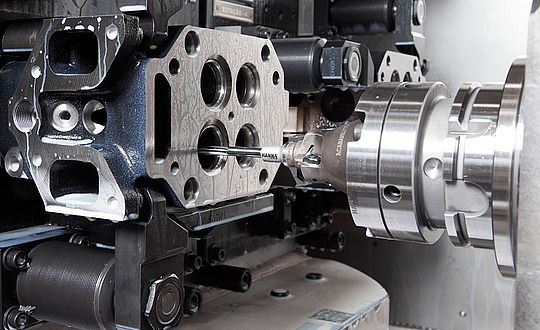

Machining units

Spindles "Made by HELLER" are among the highlights of our H-series 4-axis machining centres. Thanks to in-house production expertise, they guarantee you the highest possible machining quality and, above all, process stability and optimised performance in operation. A special benefit: The HELLER zero-spindle system. If the worst comes to the worst, the machining spindle can be replaced quickly and simply.

4-axis machining centres H: Spindle units

Robust spindle units "Made by HELLER"

  • maximum performance in operation with compact overall dimensions and robustly dimensioned spindle bearing
  • thermal stability and precision thanks to continuous cooling: Precision cooling unit and spindle thermal growth compensation
  • rigid cast iron guide slides with high dynamic rigidity and damping
  • slim spindle neck for perfect reach into the workpiece
  • horizontal spindle for optimum chip fall

Quick and easy zero spindle exchange with cost advantages

  • easy replacement without time-consuming tuning work due to spindle tuned to zero dimension
  • maximum machine availability due to short repair times
  • cost-effective solution for low TCO (Total Cost of Ownership)
  • reduced spare parts costs due to the integrated zero spindle technology

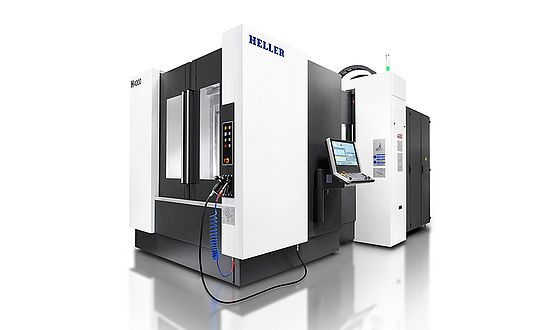

H 2000 – H 4000

3 spindle units with HSK-A 63 tool shank

  • high-speed motorized INLINE spindles up to 16,000rpm
  • torques up to 228 Nm (S6 40%)
  • with the new Dynamic Cutting spindle perfect for universal use
  • HELLER zero spindle system
  • tool shank SK 40 / BT 40 for selected machining units available as alternative


H 5000 – H 6000

3 spindle units with INLINE spindles and HSK-A 100 tool shank

  • speeds up to 13,000 rpm
  • high-torque motorized INLINE spindles up to 400 Nm (S6 40% (5 min))
  • with the new Dynamic Cutting spindle perfect for universal use
  • HELLER zero spindle system
  • tool shank SK 50 / BT 50 for selected machining units available as alternative

3 gear units with HSK-A 100 tool shank

  • three gear units with torques up to 2.292 Nm (S6 40%)
  • speeds up to 8,000 rpm
  • HELLER zero spindle system
  • tool shank SK 50 / BT 50 optionally available

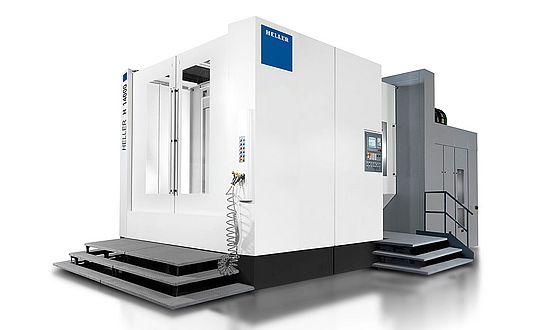

H 8000 – H 16000

5 spindle units with HSK-A 100 tool shank

  • two directly powered spindles with speeds of up to 12,500 rpm
  • three units with gear unit and torques of up to 2,292 Nm (S6 40%)
  • tool shank SK 50 / BT 50 for selected machining units available as alternative

Top equipment and features

HELLER facing slide system

  • for automatic adjustment of actuating tools
  • actuation with a full-fledged NC axis (U) integrated in the machine controller
  • ideal for boring contours or facing work
  • available for machining units with tool shank HSK


HELLER attachment head support (MSK)

  • for the use of attachment heads, e.g. angular heads
  • enlarged support basis with three-point rest
  • integrated torque input and media transfer


HELLER attachment head additional clamping

  • for additional clamping of attachment heads on the attachment head support
  • optimum stability when using attachment heads and under high process forces
  • only available for machining units with gear unit

Tool management

Short tooling times and short idle times – what you can rightly expect from our H-series 4-axis machining centres. The tool changer with two NC-axes achieves maximum precision and optimum movement sequence for short tool change times. The result, in combination with a high axis dynamic, is short chip-to-chip times.

4-axis machining centres H: Tool management

Rapid tool provisioning

  • 4 chain-type magazines with up to 240 positions for machines with HSK-A 63 (SK/BT) available
  • 3 chain-type magazines with up to 150 positions for machines with HSK-A 100 (SK/BT) available
  • rigid tool holder mounted on both sides of a double chain for optimised traversing dynamics
  • tool provisioning during machining for short tool-to-tool times
  • rapid tool change for short chip-to-chip times
  • two NC axes with lifting/swivelling principle for high dynamics and constant precision
  • stable double gripper for a secure hold with high tool weights and moments of weight
  • tool shank in enclosed holders: protection against clogging and ideal holding during positioning
  • workpiece loading station with optimum accessibility for ergonomic and rapid loading of tools
  • integrated tool provisioning place for provision of next tool during machining and short tool-to-tool times

High storage capacity

  • 1 rack-type magazine with 375 positions for machines with HSK-A 63
  • 2 rack-type magazines with up to 425 positions for machines with HSK-A 100 (SK/BT) available
  • tool handling with highly dynamic loader for rapid tool provisioning
  • rapid tool change for short chip-to-chip times
  • two NC axes with lifting/swivelling principle for high dynamics and constant precision
  • stable double gripper for a secure hold with high tool weights and moments of weight
  • convenient operating panel at workpiece loading station
  • workpiece loading station with integrated rotary station with several positions for tool loading during machining

Fast tool change for short chip-to-chip times

  • two NC axes with lifting/swivelling principle for high dynamic and constant precision
  • rigid double gripper for a secure hold with high weights and moments of weights
  • tool shank in enclosed holders: protection against clogging and ideal holding during positioning
  • tool setting station with optimum accessibility for ergonomic and fast tool setting
  • integrated tool provisioning place for provision of next tool during machining and short tool-to-tool times

Workpiece management

Our H-series 4-axis machining centres knows no bounds when it comes to workpiece size and weight. The machine's pallet changer concept permits a payload of up to 8 t. The HELLER H-series works to a high degree of precision even with this workpiece weight.

4-axis machining centres H: Workpiece management

Pallet changer as standard – ideal solution for the series production

  • automatic pallet changer with lifting/swivelling principle
  • high maximum load with robust, hydraulic drive
  • optimised power grip at machine pallets due to fork shape of the lifting/swivelling traverse
  • consistently high tool change accuracy with robust alignment elements and full blowing-off of functional surfaces
  • machine pallets with DIN hole pattern and standardised alignment elements for rapid mounting of clamping fixtures
  • hydraulic pallet clamping for a secure hold, even under high process forces

Automation

Automation solutions from HELLER are individual concepts that we develop specifically for your production facility. We analyse your requirement and devise a solution that allows you to work to your maximum capacity. We use standardised solutions wherever possible. The H-series 4-axis machining centres are prepared for pallet and workpiece automation.

4-axis machining centres H: Automation

Storage of machine pallets and automated setting of one or multiple machines

  • standardised linear storage systems with up to 15 storage locations depending on type and size (optional)
  • standardised machine interface available for numerous machine sizes (option)
  • everything from a single source: Complete solution for short installation time and commissioning
  • optimal capacity utilisation with continuous pallet feed to one or multiple machines
  • consequently, increased cost efficiency and more flexibility in the production facility
  • specific advantages for production tasks with a large part mix and series production with small batch sizes


Options

  • standardised host computer interface for optimal connection to the host computer
  • high number of functions and options for automated production control
  • media interface for hydraulic workpiece clamping

Automatic loading and unloading of workpieces

  • workpiece handling by robot relieves the operator
  • ideal solution for series production
  • machining centre works to capacity thanks to continuous material feed
  • standardised machine interface for robot loading onto the setting station (option)


Options

  • media interface for hydraulic workpiece clamping
  • location check and unclamp check

Supply and disposal

Any machine that mills will cause chip fall. And this is particularly the case with H-series 4-axis machining centres: Extremely resilient and reliable machining centres, these machines are made for production. To keep your results precise at all times, we have an efficient solution for disposal wherever chips accumulate.

4-axis machining centres H: Supply and disposal

Central media supply area on the rear of the machine

  • easy maintenance with optimum accessibility, all supply units at a glance
  • central oil-air lubrication for key components
  • seal air and selective blow-off of interfaces for consistently smooth machine operation
  • media interface for hydraulic workpiece clamping with 60 bar (H 8000 – H 16000), 80 bar (H 2000 – H 6000) or 200 bar (Option)
  • compressed air and water gun integrated in the machine housing at workpiece loading station

Cooling lubricant supply and filtration

  • coolant units: paper band filter or reversible flow filter with high tank volumes optionally available
  • internal coolant supply (IKZ) through the tool with high-pressure 50 bar (option: 70 bar with frequency converter (FU))
  • internal coolant supply with up to 7 pressure steps freely programmable via NC program
  • external tool cooling with integrated spindle rinsing nozzles
  • integrated work area shower with adjustable nozzles for optimum flushing of work area and cooling of workpiece


Options

  • coolant cooler for high thermal stability and precision
  • coolant tempering unit /on request
  • automatic filling of the coolant unit
  • oil skimmer for removing foreign oil from the cooling lubricant tank
  • IKZ 70 bar with frequency converter (FU)

Rapid chip disposal

  • H 2000 – H 6000: free chip fall below the spindle and fast disposal from the work area with central chip conveyor
  • H 8000 – H 16000: chip disposal using spiral conveyors and a cross-conveyor
  • model: scraper or hinged belt conveyor (option), selectable depending on application
  • work area flushing and shower support rapid chip removal in machines with coolant units
  • extraction unit (option), supports rapid chip removal in machines with coolant units
  • steep side panels and concertina covers with self-cleaning effect prevent chip deposits

Control technology

Intuitive, easy to program with practical features that make light work of the daily routine. Our H-series 4-axis machining centres offer a choice of two state-of-the-art CNC controls from Siemens and Fanuc.

4-axis machining centres H: Control

Siemens SINUMERIK 840D sl

  • main operating unit designed as console, as standard for the machine models H 2000 – H 6000*
  • high-performance control for machining centres that have to meet the highest performance and machining precision requirements
  • optimally integrated and selectively matched to the requirements of HELLER machining centres
  • digital drive technology and modern system architecture
  • user interface SINUMERIK Operate for efficient machine operation
  • HELLER Operation Interface for even more operating comfort, as standard for the machine models H 2000 – H 6000*


Fanuc 31i-B

  • high-performance controller for machining centres, meeting the highest performance and machining precision requirements
  • operating elements optimally integrated in the machine’s main operating unit
  • digital drive controller and modern system architecture
  • Screen Display Function user interface for efficient machine operation
  • iHMI operating software for the machine models H 2000 – H 6000
  • top precision and reliability requirements

HELLER user interface with extended range of functions

  • main operating unit designed as console for optimum operating comfort on machines with Siemens control systems
  • 24" screen and multi-touch function ideal for displaying documents and drawings
  • HELLER Operation Interface with 4 function areas for extra information at a glance
  • practical Xtends: HELLER extensions with additional functions
  • machine control panel with pushbuttons and 3 overrides for optimum control in all operating situations

  • H 8000 – H 16000: main operating unit designed as console with 24" screen, multi-touch function and HELLER Operation Interface
  • convenient operating panel at tool loading station
  • HT2 hand-held operating unit
  • HELLER4Industry Connect and other products
  • pallet management system for multiple setups
  • alternative strategy
  • job management
  • automatic setting/de-setting sequence

* As standard for the machine models H 2000 – H 6000. For H 8000 – H 16000 optionally available.

Operation and maintenance

When you work with HELLER H-series machines, just how much machine construction has gone into these 4-axis machining centres will be tangible. No matter whether on the workpiece setting station, during tool setting, programming or maintenance – your comfort and safety and, above all, the productivity of your manufacturing facility is paramount at all times.

4-axis machining centres H: Operation and maintenance

Optimal accessibility to all work areas for simple operation and maintenance

  • operating comfort and ergonomic design increase productivity
  • spatial separation between operating and maintenance areas
  • robust operating elements for tough everyday production conditions
  • smooth-running doors and easily removal metal enclosure elements

Maximum operating comfort during setting and production

  • ergonomically arranged operating elements and control screens
  • good view into the work area thanks to large safety screen
  • smooth-running work area door with linear guide opens the work area roof in the operating area
  • operating modes 2 and 3 included in standard scope of supply


Options

  • handheld operating unit
  • screen blow-off device for a clear view when machining with cutting fluid

Setting and loading during machining thanks to the pallet changer

  • large smooth-running door to optimise access for loading and setting by crane or handling systems
  • workpiece setting station, lockable at 90° indexing with foot unlocking mechanism, unrestricted manual rotation
  • operating elements, as well as media guns within reach, integrated into the machine enclosure


Options

  • automatically actuated setting station door
  • automatically rotating NC setting station
  • software options: automatic setting and de-setting sequence

Optimal accessibility for fast tool setting

  • ergonomically arranged operating elements
  • insertion location at optimum height and with integrated unclamping function for simple handling
  • tool setting at the magazine when spindle is running


Options

  • convenient operating panel at workpiece loading station
  • setting during machining
  • tool coding with RFID chip
  • HELLER TRP (Tool Requirement Planning) for automatic creation of loading and unloading lists

Central supply area at the rear of the machine

  • simple maintenance: all supply units at a glance with good accessibility
  • smooth-running doors and easily removal metal enclosure elements
  • simple and direct access to the control cabinet
  • quick-response HELLER spare part service


Options

  • maintenance manager for maintenance planning and operator support on the machine itself
  • HELLER TPS (Total Productive Services): Service Agreements for inspection, service and maintenance measures

Technical data

Product selection H 2000H 4000H 5000H 6000H 8000H 10000H 14000H 16000
Positioning range
X/Y/Z
mm 630/630/630800/800/800800/800/8001,000/1,000/1,0001,250/1,200/1,1001,600/1,400/1,3002,400/1,600/1,6002,400/1,600/1,600
Rapid traverse speed
X/Y/Z | Power (Speed)
m/min 65 (80/80/90) 65 (80/80/90) 50 (65/65/72) 50 (65/65/72) 50 (60) 45 41/45/45 41/45/45
Acceleration
X/Y/Z | Power (Speed)
m/s² 8 (10/10/12) 8 (8/8/12) 5 (7/7/10) 5 (7/7/10) 4 (5) 4 3 3/3/2
Positioning tolerance Tp / At1)
X/Y/Z | VDI/DGQ 3441 / ISO 230
mm 0.005 0.005 0.005 0.008 0.008 0.008 0.008 0.008
Tool shank
SK/BT for selected units available as alternative
Size HSK-A 63HSK-A 63HSK-A 100HSK-A 100HSK-A 100HSK-A 100HSK-A 100HSK-A 100
Chip-to-chip time2)
t₂,₃ | VDI 2852 | Power (Speed)
s 2.5 (2.2)2.8 (2.3)3.4 (3.0)3.6 (3.2)4.5 (4.3)5.5 6.7 6.7
Clamping surface
Nominal size
mm 400 x 500500 x 630630 x 630630 x 630800 x 8001,000 x 1,0001,000 x 1,0001,250 x 1,600
Workpiece dimension
Diameter x height
mm Ø 720 x 850Ø 900 x 1,000Ø 900 x 1,000Ø 1,000 x 1,200Ø 1,250 x 1,400Ø 1,400 x 1,600Ø 1,400 x 1,800Ø 2,000 x 1,725
Clamping load
Power (Speed)
kg 800 1,400 1,400 1,400 2,000 (1,250)4,000 4,000 8,000
Machine control
Siemens SINUMERIK 840D sl / Fanuc 31 i-B
Siemens/FanucSiemens/FanucSiemens/FanucSiemens/FanucSiemens/FanucSiemens/FanucSiemens/FanucSiemens/-

( ) = optional values
- = not available
1) position uncertainty
2) applies to Siemens SINUMERIK 840D sl

Downloads

HELLER_4-axis-machining-centres-H_EN.pdf
Product brochure
4-axis machining centres H
3.5 MB

At a glance, our Download Centre offers an extensive range of information materials about our company, our products and services for you to download.

Contact

Contact

Sales & Services

Sales & Services

Do you have questions about our products and services? Please get in touch with us, we are here for you! Benefit from our global HELLER network with knowledgeable sales and service contacts located in your region.

Find your nearest personal contact.

No results could be found.

You might also be interested in

HELLER Newsletter

Register now!

The HELLER Newsletter provides you with information about all current topics concerning our company, our products and services as well as upcoming trade shows and events. Register now to make sure you never miss any news from the HELLER Group!
