The quick way to boost your productivity
Are you looking for a machining centre, but have no time to put up with long delivery times? Then we have the perfect solution for you: discover the 4-axis and 5-axis machining centres from our H and HF series available at short notice. Pre-configured and available in various specifications – for maximum efficiency and diverse production requirements.
Find the right machine for you now!
Productivity in 4 or 5 axes
You have the choice

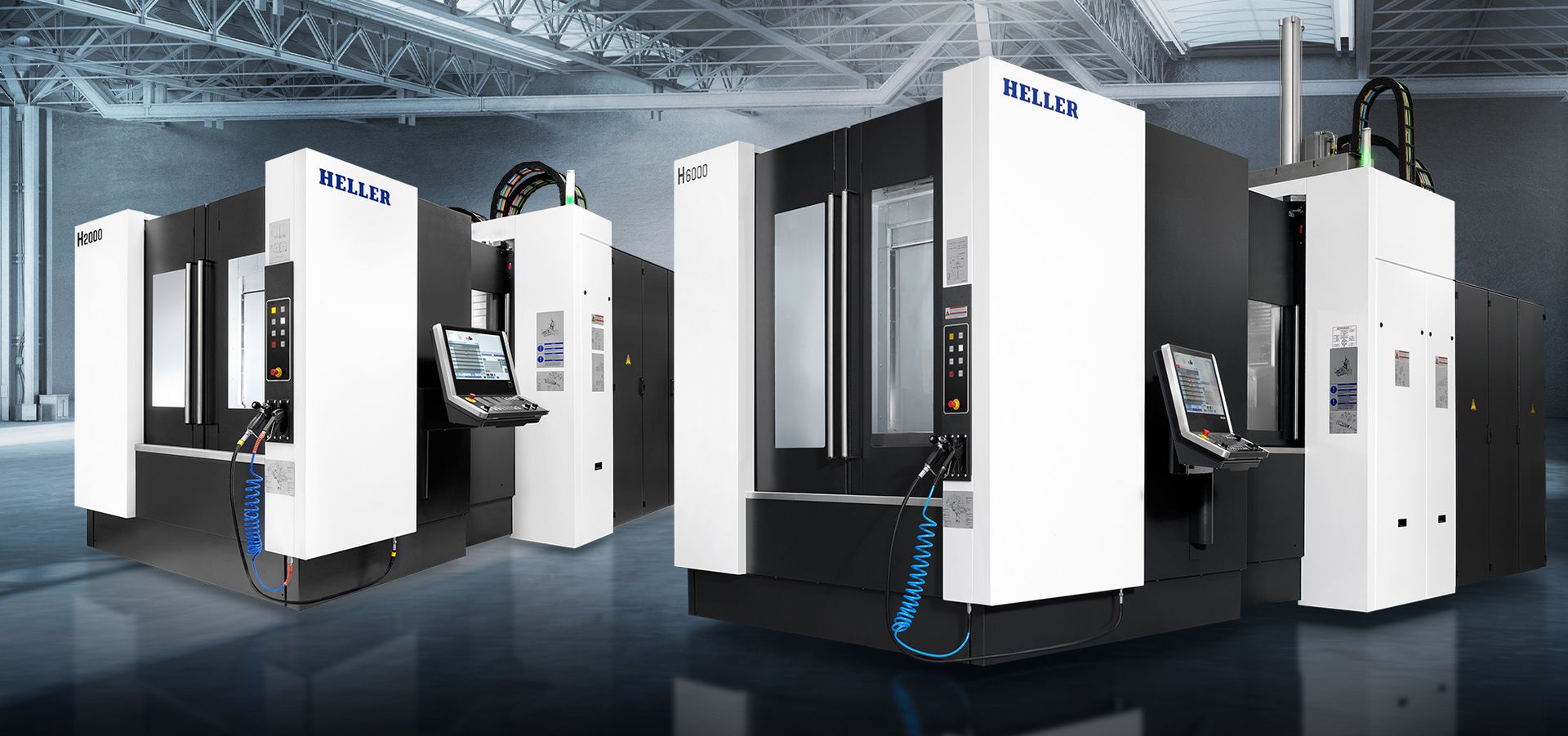

4-axis machining centres H
4-axis machining centres with unbeatable productivity and unparalleled resilience
The perfect 4-axis machining centre must produce reliably even under extreme loads and offer a fair price/performance ratio. Our solution: HELLER H-series 4-axis machining centres. Components that have been reliably used in mass production for years coupled with a high dynamic guarantee you robust processes – even at their limits, seven days a week in 3-shift operations.
4-axis machining centres with unbeatable productivity and unparalleled resilience
The perfect 4-axis machining centre must produce reliably even under extreme loads and offer a fair price/performance ratio. Our solution: HELLER H-series 4-axis machining centres. Components that have been reliably used in mass production for years coupled with a high dynamic guarantee you robust processes – even at their limits, seven days a week in 3-shift operations.
Available models
H 4000 | M 59456
| Positioning range X/Y/Z | 800/800/800 mm |
| Rapid traverse speed X/Y/Z | 80/80/90 m/min |
| Tool shank | HSK-A 63 |
| Spindle | SC: 18,000 1/min / 45 kW / 103 Nm |
| Clamping surface (nominal size) | 500 x 630 mm |
| Clamping load | 1,400 kg |
| Hydraulic workpiece clamping | 80 bar |
| Tool magazine | Chain-type magazine, 80 places |
| Machine control | Siemens SINUMERIK 840D sl |
Available from:
June 2024
H 4000 | M 59460
| Positioning range X/Y/Z | 800/800/800 mm |
| Rapid traverse speed X/Y/Z | 65/65/65 m/min |
| Tool shank | HSK-A 63 |
| Spindle | PC: 12,000 1/min / 45 kW / 228 Nm |
| Clamping surface (nominal size) | 500 x 630 mm |
| Clamping load | 1,400 kg |
| Hydraulic workpiece clamping | 80 bar |
| Tool magazine | Chain-type magazine, 160 places |
| Machine control | Siemens SINUMERIK 840D sl |
Immediately available
H 4000 | M 59688
| Positioning range X/Y/Z | 800/800/800 mm |
| Rapid traverse speed X/Y/Z | 65/65/65 m/min |
| Tool shank | HSK-A 63 |
| Spindle | PC: 12,000 1/min / 45 kW / 228 Nm |
| Clamping surface (nominal size) | 500 x 630 mm |
| Clamping load | 1,400 kg |
| Hydraulic workpiece clamping | 200 bar |
| Tool magazine | Chain-type magazine, 54 places |
| Machine control | Siemens SINUMERIK 840D sl |
Immediately available
H 6000 | M 59463
| Positioning range X/Y/Z | 1,000/1,000/1,000 mm |
| Rapid traverse speed X/Y/Z | 50/50/50 m/min |
| Tool shank | HSK-A 100 |
| Spindle | PC: 8,000 1/min / 43 kW / 822 Nm |
| Clamping surface (nominal size) | 630 x 630 mm |
| Clamping load | 1,400 kg |
| Hydraulic workpiece clamping | 80 bar |
| Tool magazine | Chain-type magazine, 100 places |
| Machine control | Siemens SINUMERIK 840D sl |
Immediately available
H 6000 | M 59678
| Positioning range X/Y/Z | 1,000/1,000/1,000 mm |
| Rapid traverse speed X/Y/Z | 50/50/50 m/min |
| Tool shank | HSK-A 100 |
| Spindle | PC: 8,000 1/min / 43 kW / 822 Nm |
| Clamping surface (nominal size) | 630 x 630 mm |
| Clamping load | 1,400 kg |
| Hydraulic workpiece clamping | 80 bar |
| Tool magazine | Chain-type magazine, 150 places |
| Machine control | Siemens SINUMERIK 840D sl |
Immediately available

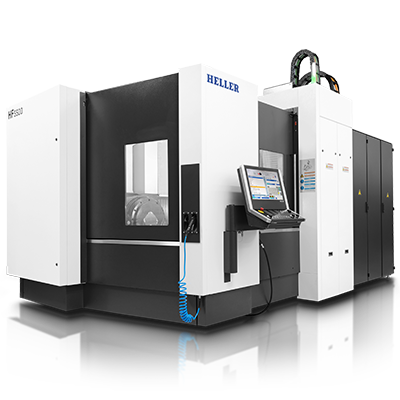

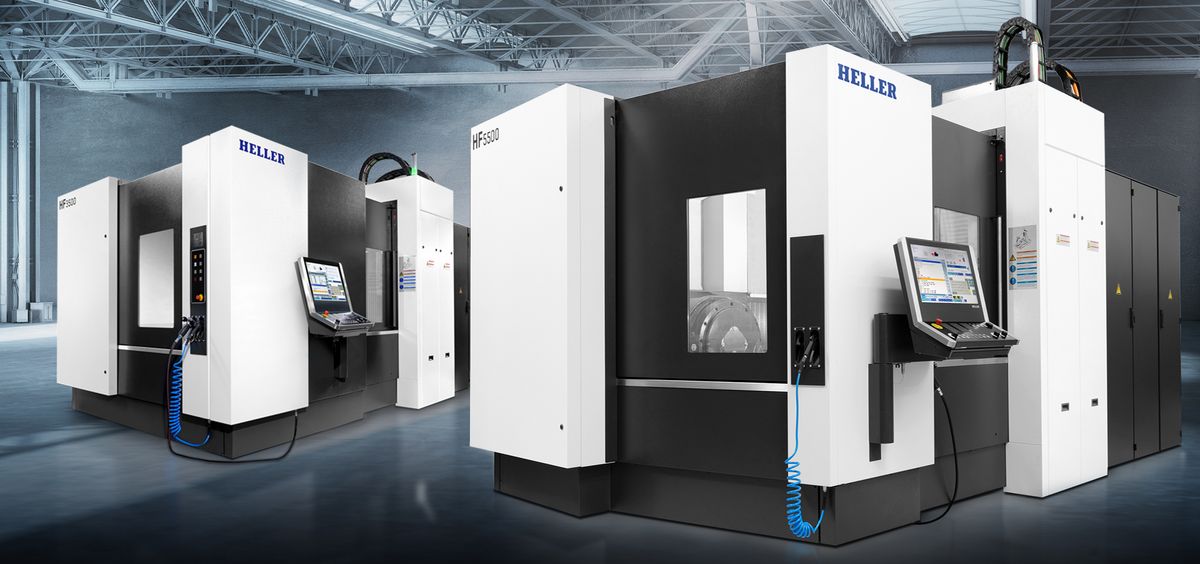

5-axis machining centres HF
5-axis machining centres with the 5th axis in the workpiece for dynamic and productive machining
The 5-axis machining centres from the HF series are optimally equipped to meet the exacting requirements of modern production processes. Enabling 5-sided and simultaneous 5-axis machining, they allow you to handle many different tasks on a single machine. Highly productive and flexible, with easy operation and maintenance.
5-axis machining centres with the 5th axis in the workpiece for dynamic and productive machining
The 5-axis machining centres from the HF series are optimally equipped to meet the exacting requirements of modern production processes. Enabling 5-sided and simultaneous 5-axis machining, they allow you to handle many different tasks on a single machine. Highly productive and flexible, with easy operation and maintenance.
Available models

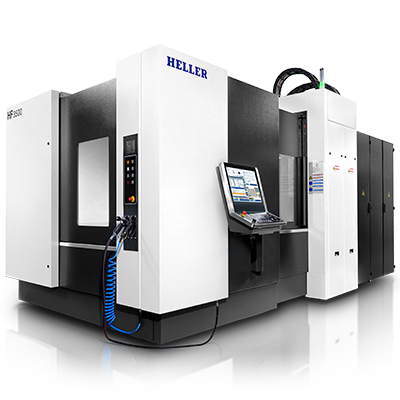

HF 3500 | M 59466
| Positioning range X/Y/Z | 710/750/710 mm |
| Rapid traverse speed X/Y/Z | 90/90/80 m/min |
| Tool shank | HSK-A 63 |
| Spindle | PC: 12,000 1/min / 45 kW / 228 Nm |
| Clamping surface (nominal size) | 400 x 500 mm |
| Clamping load | 650 kg |
| Hydraulic workpiece clamping | 200 bar |
| Tool magazine | Chain-type magazine, 80 places |
| Machine control | Siemens SINUMERIK 840D sl |
Immediately available
HF 3500 | M 59098
| Positioning range X/Y/Z | 710/750/710 mm |
| Rapid traverse speed X/Y/Z | 90/90/80 m/min |
| Tool shank | HSK-A 63 |
| Spindle | DC: 16,000 1/min / 56 kW / 180 Nm |
| Clamping surface (nominal size) | 400 x 500 mm |
| Clamping load | 650 kg |
| Hydraulic workpiece clamping | 200 bar |
| Tool magazine | Chain-type magazine, 160 places |
| Machine control | Siemens SINUMERIK one |
Available from:
June 2024
HF 3500 | M 58938
| Positioning range X/Y/Z | 710/750/710 mm |
| Rapid traverse speed X/Y/Z | 65/65/65 m/min |
| Tool shank | HSK-A 63 |
| Spindle | PC: 12,000 1/min / 45 kW / 228 Nm |
| Clamping surface (nominal size) | 400 x 500 mm |
| Clamping load | 550 kg |
| Workpiece clamping | mechanical |
| Tool magazine | Chain-type magazine, 54 places |
| Machine control | Siemens SINUMERIK 840D sl |
Available from:
May 2024
